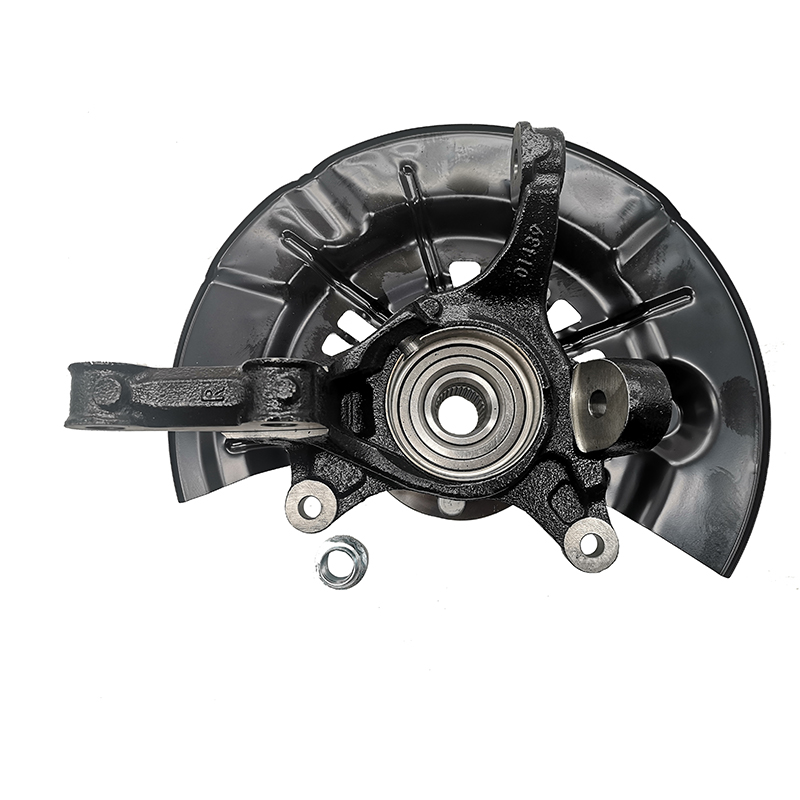

0106SKU19-B2 HWH Front Right Loaded knuckles 686-254: Toyota Avalon 2013-2016, Toyota Camry 2012-2017

HWH No.: 0106SKU19-B2
Reference  Number: 686-254
Steering Knuckle OE: 4321106240
Backing Plate OE.:: 4778106130
Wheel Hub OE: 43502AA021

Products Details

HWH Product Details

Anti Lock Braking System Yes
Anti Lock Braking System Type: Sensor
Bolt Circle Diameter 4.5in./114.3mm
Brake Pilot Diameter 2.44in./61.9mm
Flange Bolt Hole Diameter 0.07in./1.778mm
Flange Bolt Hole Quantity 5
Flange Bolts Included: Yes
Flange Diameter: 5.47 in./138.9mm
Flange included: Yes
Flange Shape: Circular
Hub Pilot Diameter: 1.772in./45mm
Item Grade: Standard
Material: Steel
Spline Quantity: 30
Wheel Stud Quantity: 5
Wheel Stud Size: M12-1.5
Wheel Studs Included: Yes
Knuckle 4321106240
Backing Plate 4778106130
Wheel Hub 43502AA021

HWH Packing Details

Package Contents: 1Knuckle;1Bearing;1Hub;1Backing Plate;1Axle Nut
Package Quantity: 1
Packaging Type: Box
Selling Package Quantity UOM Piece

Direct OE Numbers
